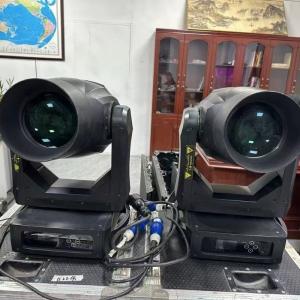

ACME XP-470BSW combines high-precision beam and immersive color wash functions in a single unit, equipped with a revolutionary 470W RGBACL (red/green/blue/amber/lime/cyan) color mixing engine, achieving 95% TM-30 color fidelity and 23,800 lumen output intensity, perfectly meeting the dual needs of surgical-grade beam and wide-area color coverage in concert tours, TV production and architectural lighting.
| Category | Parameter | Specification |
|---|---|---|
| LIGHT SOURCE | Lamp Type | Philips MSD Platinum 20R |
| Color Temperature | 7800K (±200K) | |
| OPTICAL SYSTEM | Zoom Range (Beam Mode) | 2°~7° |
| Zoom Range (Spot Mode) | 5°~32° | |
| Zoom Range (Wash Mode) | 8°~70° | |
| CONTROL SYSTEM | Channel Modes | 20/21/24/28 Channels |
| IoT Platform | AIOT Fengyun System | |
| Management System (Optional) | "Yi•Data" Cloud Management | |
| Control Protocols | DMX512, RDM, Wireless (Optional) | |
| Firmware Update | Via DMX Connection | |
| MOVEMENT SYSTEM | Pan Range | 540° Continuous |
| Tilt Range | 270° | |
| Positioning Accuracy | 16-bit (0.002° resolution) | |
| Auto-Correction | X/Y Axis Position Correction | |
| Safety Lock | Vertical Axis Mechanical Lock | |
| STRUCTURAL DESIGN | Display Interface | Backlit LCD Screen |
| Emergency Power | NiMH Battery Backup (90min) | |
| Signal Interfaces | 3-pin & 5-pin XLR In/Out | |
| Power Input | Neutrik PowerCON TRUE1 | |
| Protection Rating | IP20 (Indoor Use) | |
| PHYSICAL | Power Requirements | AC 100~240V, 50/60Hz |
| Power Consumption | 600W (Max) | |
| Dimensions (L×W×H) | 400 × 335 × 667 mm | |
| Net Weight | 28.5 kg | |
| CERTIFICATION | Safety Compliance | CE, RoHS, EN 60598-2-17 |
